| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| R2-BCM | 2-12x20 Pan Capacity | 36” | 30” | 36” | 350 |
| R3-BCM | 3-12x20 Pan Capacity | 50” | 30” | 36” | 485 |
| R4-BCM | 4-12x20 Pan Capacity | 60” | 30” | 36” | 500 |
| R5-BCM | 5-12x20 Pan Capacity | 74” | 30” | 36” | 580 |
| R6-BCM | 6-12x20 Pan Capacity | 96” | 30” | 36” | 640 |

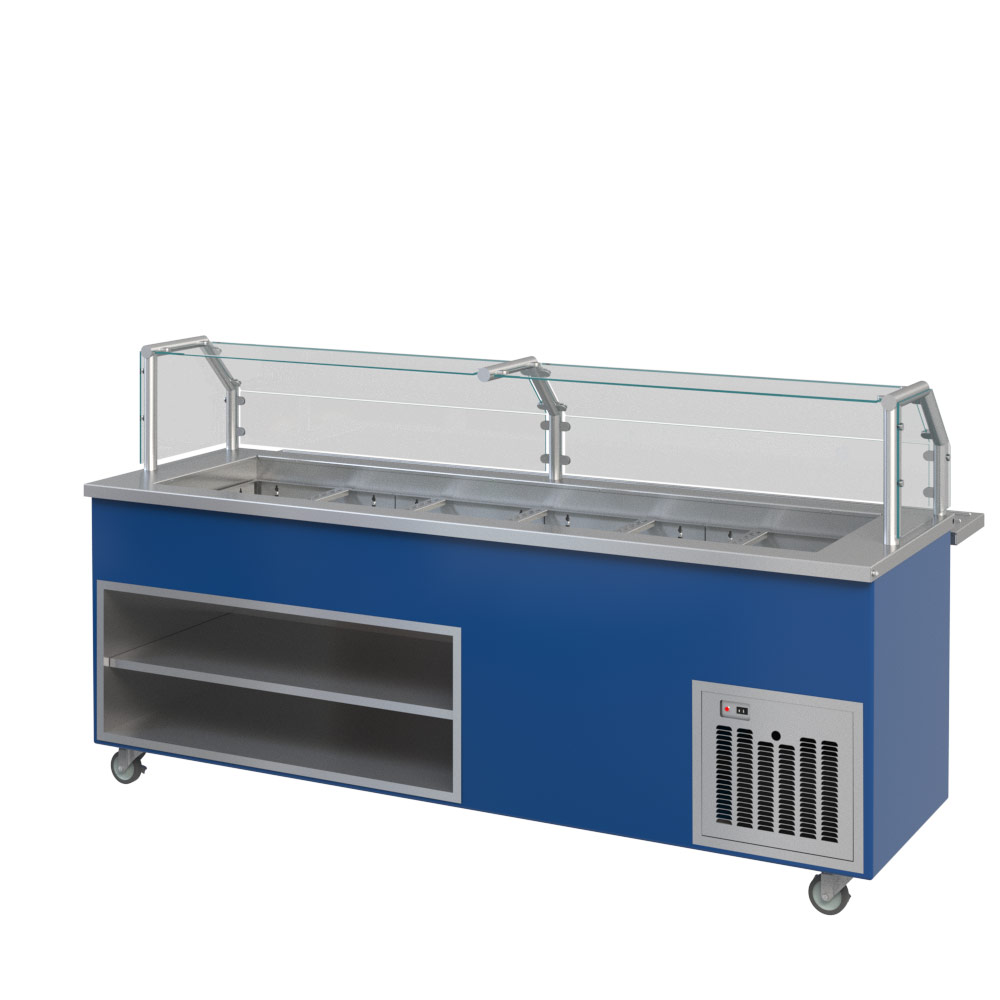

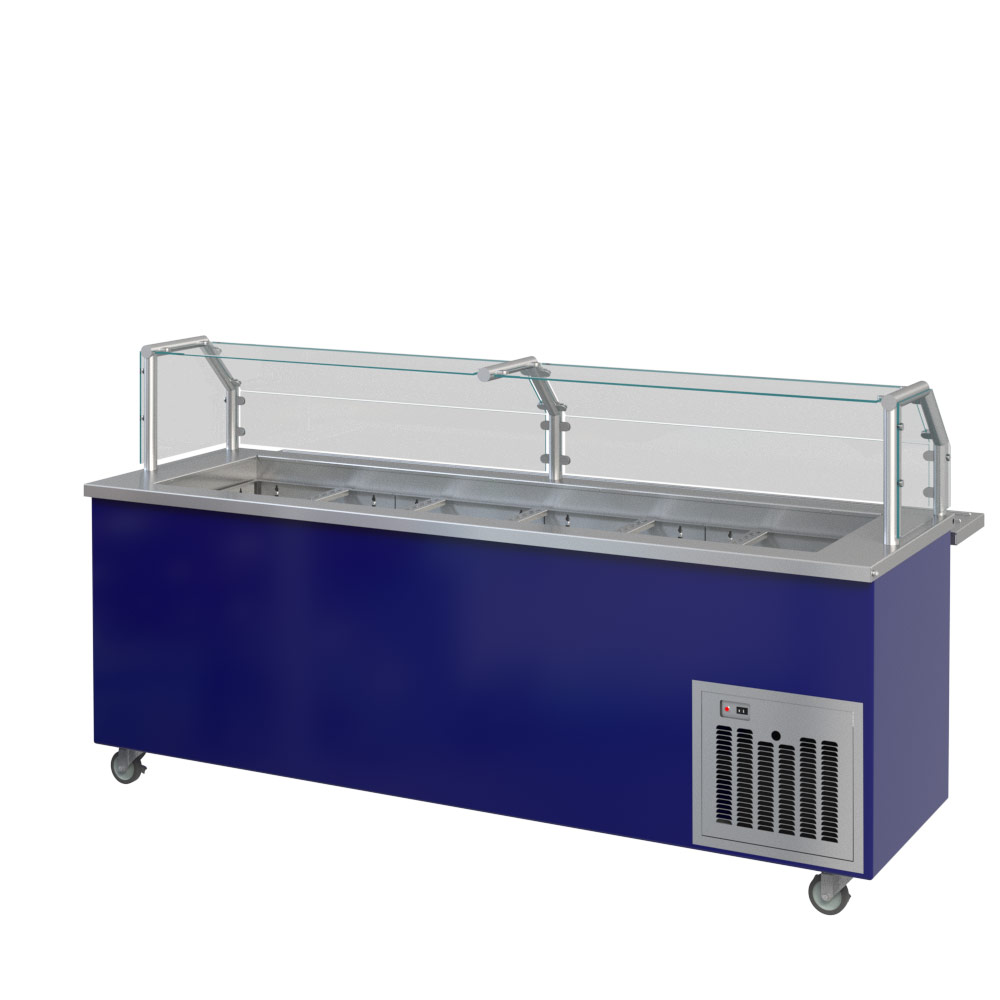

The Piper Bloomington Cold Food Unit features an extra deep cold pan of 9-7/16” deep and is listed NSF/ANSI Standard 7. The Bloomington Cold Units are designed to serve a variety of refrigerated food products, these units are ideal as a salad bar merchandiser. Reflections units are compatible and will interlock with other Reflections units.
STANDARD FEATURES
- Seamless, molded FRP body with smooth exterior and rounded corners
- 14-gauge stainless steel top with fully welded square turndowns on all sides
- Enclosed base
- 20-gauge stainless steel fully welded 9-7/16” deep cold pan
- Fully hermetic condensing unit, located on slide-out rails behind removable louvered panels for cross-flow ventilation
- Welded watertight well has a concealed continuous refrigerated coil bonded to the sides and is fully insulated
- Cold pan has a 3/4" FPT drain ball valve located below the unit
- 4" diameter swivel plate casters with brakes
- Interlocking mechanism is provided to interlock with other Reflections units
ELECTRICAL
- Units available in 120 volt standard
- Seven foot electrical cord and plug
REFRIGERATION SYSTEM
- 1/3 horsepower compressor
- Fan-cooled condensing unit with an expansion valve pressure control switch
- Refrigerant coils shall be of copper tubing wrapped around the sides of the well
*Amperage/NEMA plug type may vary with options.
Petite Reflections is 30" high - under counter storage is shortened and does not have intermediate shelf.
NSF/ANSI STANDARD 7
This unit is listed with CSA in NSF/ANSI Standard 7 for design and construction and has been performance tested for the storage of potentially hazardous foods. The performance test criteria is holding a food-like media at or below 41°F without any freezing for four hours at 86°F ambient temperature.
STANDARD COLORS
- Wine Red (RAL 3005)
- Signal Red (RAL 3001)
- Yellow (RAL 1021)
- Light Blue (RAL 5012)
- Gentiane Blue (RAL 5010)
- Water Blue (RAL 5021)
- Moss Green (RAL 6005)
- Squirrel Gray (RAL 7000)
- Black
- White
- Custom colors available
- Optional Graphics Packages available
COMMON OPTIONS
- Tray slides
- Protector guards
- Refrigerated storage base
- See reverse side for additional options
WARRANTY
- One year parts and labor. Warranty is detailed on inside front cover of the price list.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| R3BTS | 3-bar tray slide |
| RBDD | Two tier buffet protector guard |
| RBDDL | Two tier buffet protector guard with fluorescent lights |
| RBEG | Buffet end guards (pr) |
| RBHL | Heat lamps, bullet-type (buffet only) |
| RBKR | Common circuit breaker for well heaters only |
| RBL | Stainless steel 6" adjustable bullet feet |
| RBPG | Buffet style protector guard |
| RBPG1 | Single sided buffet style protector guard |
| RBPG1C | Classic single sided tubular glass buffet guard |
| RBPG1FL | Single sided buffet style protector guard with fluorescent lights |
| RBPG1IL | Single sided buffet style protector guard with incandescent lights |
| RBPGC | Classic tubular glass buffet guard |
| RBPGFL | Buffet style protector guard with fluorescent lights |
| RBPGH | Buffet style protector guard with heat strips |
| RBPGIL | Buffet style protector guard with incandescent lights |
| RCDD | Two tier cafeteria protector guard |
| RCDDC | Classic two tier tubular glass cafeteria guard |
| RCDDL | Two tier cafeteria protector guard with fluorescent lights |
| RCEG | Cafeteria end guards (pr) |
| RCPG | Cafeteria style protector guard |
| RCPGC | Classic tubular glass cafeteria guard |
| RCPGFL | Cafeteria style protector guard with fluorescent lights |
| RCPGH | Cafeteria style protector guard with heat strips |
| RCPGHL | Cafeteria style protector guard with heat and light strips |
| RCPGL | Cafeteria style protector guard with incandescent lights |
| RDOUT | Duplex Outlet (120V, 15 AMP) |
| RDRN | Drain and manifold with shut-off valve |
| RHD | Under storage hinged doors |
| RHU | Heated storage base with doors and pan slides (convertible racks hold 10-2" deep 12" x 20" pans or 10 - 18" x 26" bun pans) |
| RMCB | 8" maple cutting board |
| RMRCE | Extended compressor warranty |
| ROHS | Overhead shelf |
| ROU | Open under storage with shelf |
| RRU | Refrigerated storage base with doors and pan slides: holds 8-2" deep 12" x 20" pans |
| RSCB | 8" stainless steel cutting board |
| RSCPGC | Cafeteria single tubular vertical glass guard |
| RSES | End shelf - drop type |
| RSFTS | Solid flat tray slide, 16-gauge stainless steel |
| RSRTS | Solid 3-ribbed tray slide, 16-gauge stainless steel |
