Reflections Cold Unit

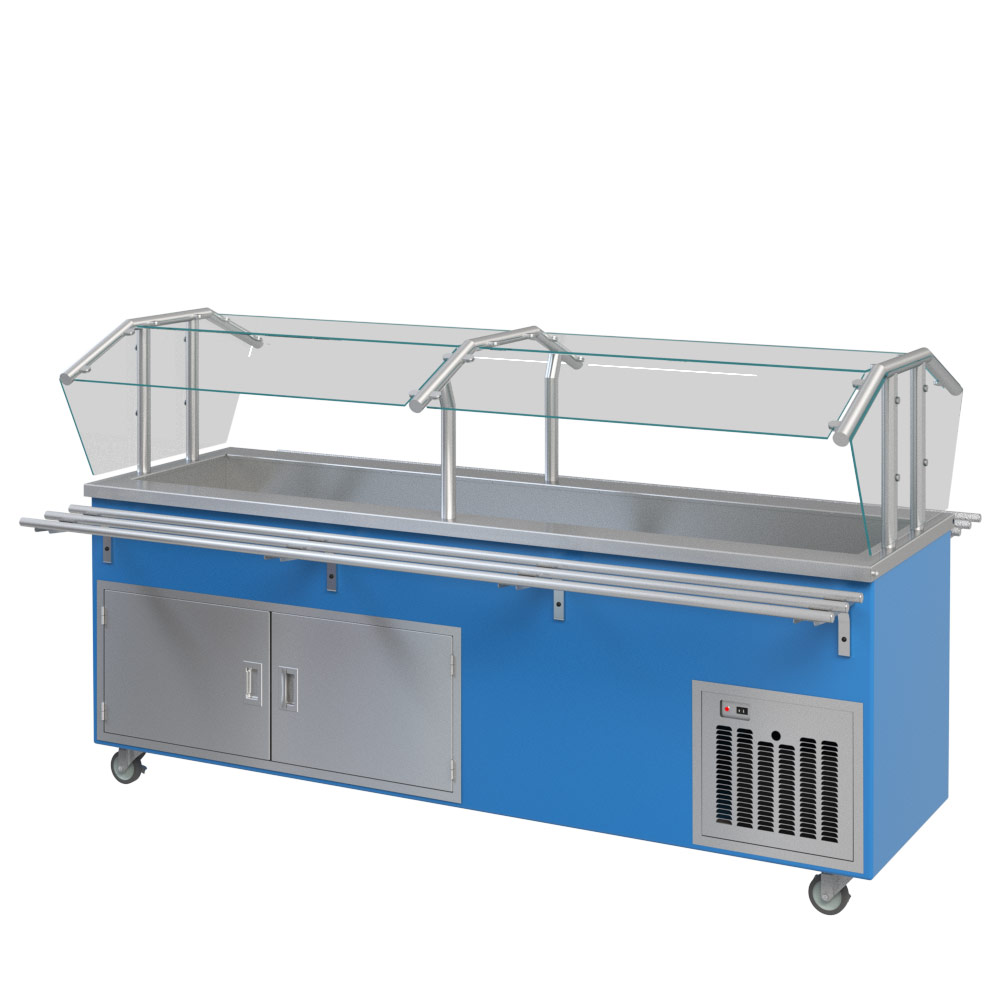

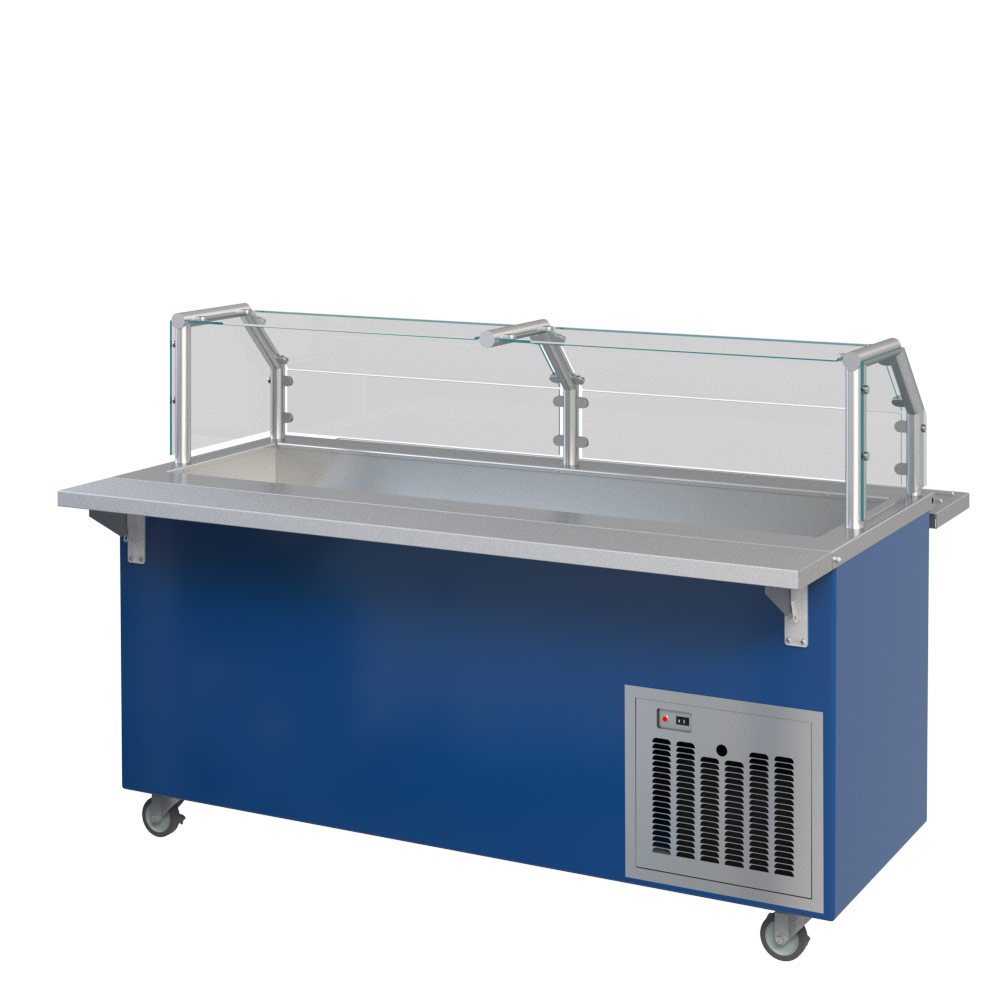

The Piper Cold Food Units are available mechanically cooled (R-CM) or ice only (R-CI). These units are designed to serve a variety of refrigerated food products and are ideal as a salad bar merchandiser. The versatile modular design allows you either a cafeteria or a buffet unit to fit your line-up. Reflections units are compatible and will interlock with other Reflections units.

STANDARD FEATURES

• Seamless, molded FRP body with smooth exterior and rounded corners
• 14-gauge stainless steel top with fully welded square turndowns on all sides
• Enclosed base
• 20-gauge stainless steel fully welded 5” deep cold pan
• The welded, watertight well has a concealed continuous refrigeration coil bonded to the underside and is fully insulated on R-CM
• Cold pan has a 3/4" FPT ball valve located below the unit
• 4” diameter swivel plate casters with brakes
• Interlocking mechanism is provided to interlock with other Reflections units

ELECTRICAL - R-CM UNITS ONLY

• Units available in 120 volt standard
• Seven foot electrical cord and plug

REFRIGERATION - R-CM UNITS ONLY

• 1/3 horsepower compressor
• Fully hermetic condensing unit, located on slide-out rails behind removable louvered panels for cross-flow ventilation
• Fan-cooled condensing unit with an expansion valve pressure control switch
• Refrigerant coils shall be of copper tubing attached to the bottom of the well

STANDARD COLORS

• Wine Red (RAL 3005)
• Signal Red (RAL 3001)
• Yellow (RAL 1021)
• Light Blue (RAL 5012)
• Gentiane Blue (RAL 5010)
• Water Blue (RAL 5021)
• Moss Green (RAL 6005)
• Squirrel Gray (RAL 7000)
• Black
• White
• Custom colors available
• Optional Graphics Packages available

COMMON OPTIONS

• Tray slides
• Protector guards
• See reverse side for additional options
