| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| R3-CB | 3 -Pan | 50” | 30” | 36” | 520 |
| R4-CB | 4 -Pan | 60” | 30” | 36” | 548 |
| R5-CB | 5 -Pan | 74” | 30” | 36” | 625 |
| R6-CB | 6 -Pan | 96” | 30” | 36” | 640 |

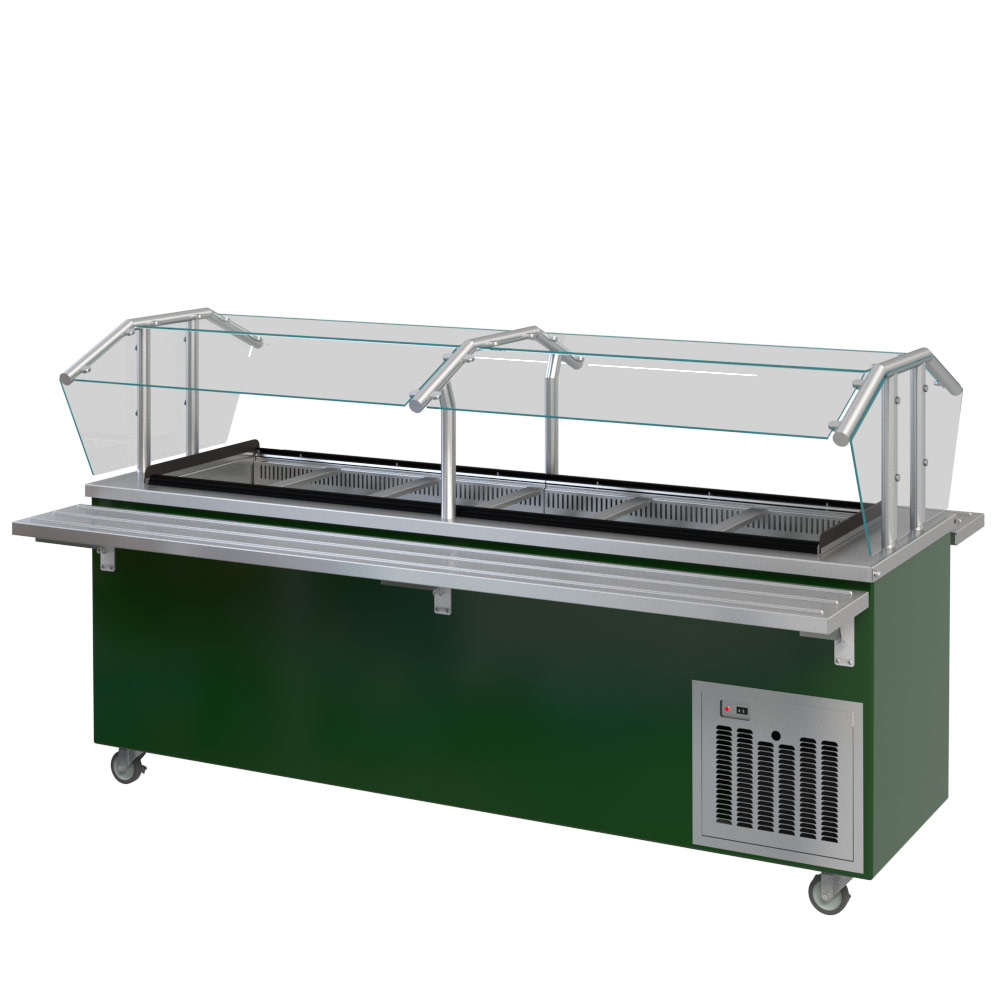

The Cool Breeze unit is ideal for the front-of-the house for salad bars and kiosks and is the perfect product for cook-chill tray lines where cold food temperature maintenance is a must.
The Cool Breeze system maintains a cold flow of air moving over the product while not drying it out or allowing it to freezer burn. Reflections units are compatible and will interlock with other Reflections units.
STANDARD FEATURES
- Seamless, molded FRP body with smooth exterior and rounded corners
- 14-gauge stainless steel top with fully welded square turndowns on all sides
- Enclosed base
- Fully enclosed and insulated 4-3/4” deep well with electronic thermostat
- Fan cooled refrigeration unit located on slide-out interior housing behind removable louvered panels for cross-flow ventilation
- Heated condensate pan
- Adaptable for up to 4” deep pans or custom displays
- 4” diameter swivel plate casters with brakes
- Interlocking mechanism is provided to interlock with other Reflections units
- Drain provided with 3/4" FPT ball valve under unit.
ELECTRICAL
- Units available in 120 volt standard
- Seven foot electrical cord and plug
NSF/ANSI STANDARD 7
This unit is listed with CSA in NSF/ANSI Standard 7 for design and construction and has been performance tested for the storage of potentially hazardous foods. The performance test criteria is holding a food-like media at or below 41°F without any freezing for four hours at 86°F ambient temperature.
REFRIGERATION SYSTEM
- 1/3 horsepower compressor
- Fan-cooled condensing unit with an expansion valve pressure control switch
- Refrigerant coils shall be of copper tubing attached to the bottom of the well
STANDARD COLORS
- Wine Red (RAL 3005)
- Signal Red (RAL 3001)
- Yellow (RAL 1021)
- Light Blue (RAL 5012)
- Gentiane Blue (RAL 5010)
- Water Blue (RAL 5021)
- Moss Green (RAL 6005)
- Squirrel Gray (RAL 7000)
- Black
- White
- Custom colors available
- Optional Graphics Packages available
COMMON OPTIONS
- Tray slides
- Protector guards
- See reverse side for additional options
WARRANTY
- One year parts and labor. Warranty is detailed on inside front cover of the price list.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| R3BTS | 3-bar tray slide |
| RBDD | Two tier buffet protector guard |
| RBDDL | Two tier buffet protector guard with fluorescent lights |
| RBEG | Buffet end guards (pr) |
| RBHL | Heat lamps, bullet-type (buffet only) |
| RBKR | Common circuit breaker for well heaters only |
| RBL | Stainless steel 6" adjustable bullet feet |
| RBPG | Buffet style protector guard |
| RBPG1 | Single sided buffet style protector guard |
| RBPG1C | Classic single sided tubular glass buffet guard |
| RBPG1FL | Single sided buffet style protector guard with fluorescent lights |
| RBPG1IL | Single sided buffet style protector guard with incandescent lights |
| RBPGC | Classic tubular glass buffet guard |
| RBPGFL | Buffet style protector guard with fluorescent lights |
| RBPGH | Buffet style protector guard with heat strips |
| RBPGIL | Buffet style protector guard with incandescent lights |
| RCDD | Two tier cafeteria protector guard |
| RCDDC | Classic two tier tubular glass cafeteria guard |
| RCDDL | Two tier cafeteria protector guard with fluorescent lights |
| RCEG | Cafeteria end guards (pr) |
| RCPG | Cafeteria style protector guard |
| RCPGC | Classic tubular glass cafeteria guard |
| RCPGFL | Cafeteria style protector guard with fluorescent lights |
| RCPGH | Cafeteria style protector guard with heat strips |
| RCPGHL | Cafeteria style protector guard with heat and light strips |
| RCPGL | Cafeteria style protector guard with incandescent lights |
| RDOUT | Duplex Outlet (120V, 15 AMP) |
| RDRN | Drain and manifold with shut-off valve |
| RHD | Under storage hinged doors |
| RHU | Heated storage base with doors and pan slides (convertible racks hold 10-2" deep 12" x 20" pans or 10 - 18" x 26" bun pans) |
| RMCB | 8" maple cutting board |
| RMRCE | Extended compressor warranty |
| ROHS | Overhead shelf |
| ROU | Open under storage with shelf |
| RRU | Refrigerated storage base with doors and pan slides: holds 8-2" deep 12" x 20" pans |
| RSCB | 8" stainless steel cutting board |
| RSCPGC | Cafeteria single tubular vertical glass guard |
| RSES | End shelf - drop type |
| RSFTS | Solid flat tray slide, 16-gauge stainless steel |
| RSRTS | Solid 3-ribbed tray slide, 16-gauge stainless steel |
