File Downloads
| File | Description | Size | |
|---|---|---|---|
| Rack Mini 2020.pdf | Racks Mini Catalog |
B | |
| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| A36-1826-9 | Aluminum | 20.5" | 36" | 62 | |
| A60-1826-16 | Aluminum | 20.5" | 60" | 70 | |
| A72-1826-20 | Aluminum | 20.5" | 72" | 75 | |
| 2A72-1826-40 | Aluminum | 40" | 72" | 170 | |
| A36-1826-5 | Aluminum | 20.5" | 36" | 58 | |

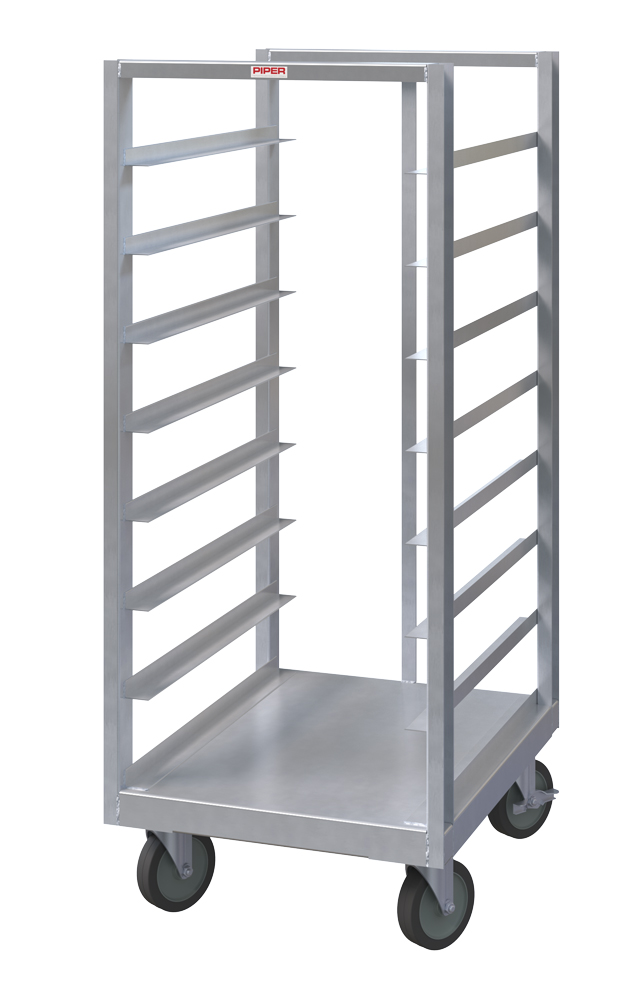

| A48-1826-8 | Aluminum | 20.5" | 48" | 62 | |
| A60-1826-10 | Aluminum | 20.5" | 60" | 66 | |
| A72-1826-12 | Aluminum | 20.5" | 72" | 70 | |
| 2A72-1826-24 | Aluminum | 40" | 72" | 140 |
SPECIFICATIONS

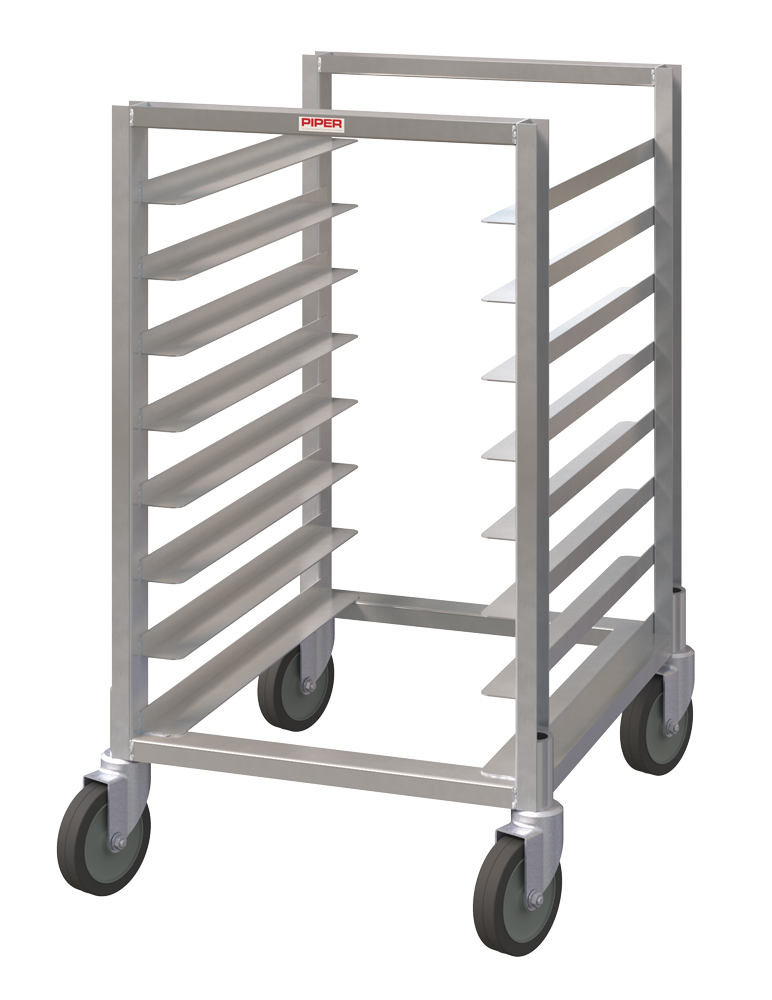

Series A, heavy duty, aluminum angle guide, open racks for 18" x 26" sheet pans. (Optional for two 14 x 18 trays)
FRAME
The vertical uprights and the top and bottom cross bracing are 2" x 1" x 1/8" thick extruded aluminum channels welded to form a rigid frame.
GUIDES
The guides are 1" x 1-1/2" x .100" thick extruded aluminum angles welded to the vertical uprights, with all corners chamfered and deburred.
TIE ROD
Models A-60, A-72 and 2A-72 have 1/2" diameter aluminum tie rods welded to the front and rear vertical uprights for extra rigidity.
CASTERS
The units are mounted on four 5" diameter, heavy duty, swivel casters
Capacity: Last digits of model number indicate the quantity of 18" x 26" pans per rack.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| 5x2 | Heavy-duty Casters (set of 4)(requires SB option) |
| B | Corner Bumper (adds 2” to overall length and width) Requires SB |
| EMB | Personalized Embossment (12 letters per line - price per line) Per Line |
| FL | Floor Lock (requires SB option) |
| PB | Full Perimeter Bumper (adds 2” to overall length and width) |
| PH | Push Handle |
| PS | Pan Stop |
| R | Rotating Bumper (Adds 5" to overall length and width) |
| SB | Solid Bottom |
| V | Vertical Bumpers (adds 1 |
| WB | Two locking casters |
| Y5 | Polyurethane 5 |
