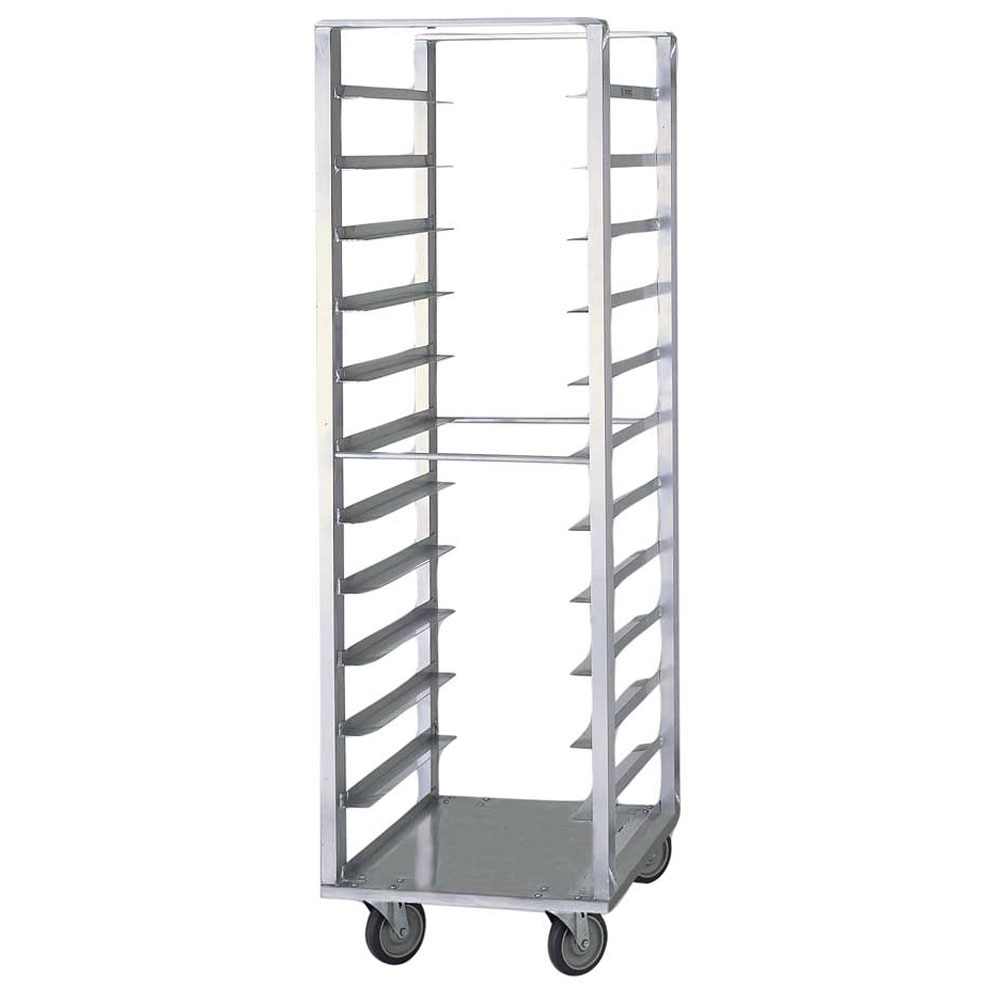

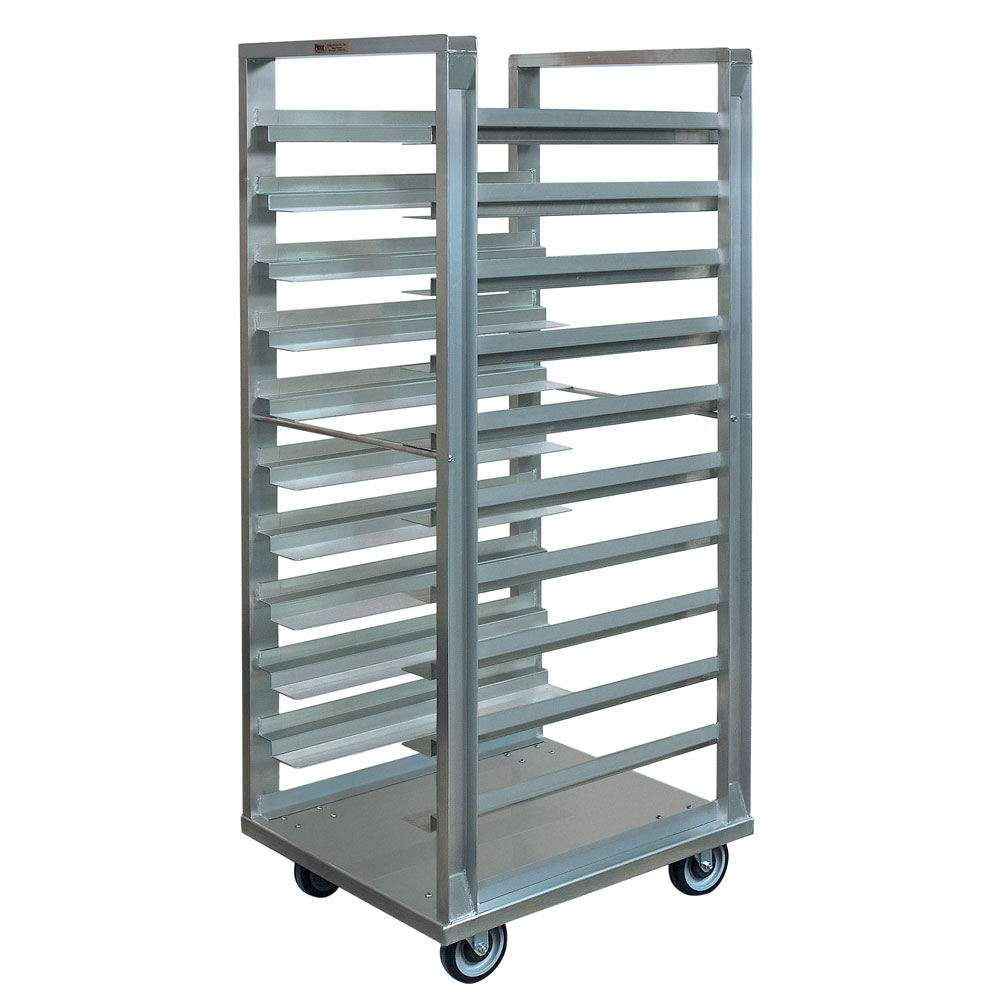

Angle Racks

Piper Angle Racks are designed for in-house foodservice facilities, bakeries, restaurants and high-activity operations handling trayed product.

Our fully welded frame and 1/2” aluminum tie bar avoids distortion and gives greater side-to-side strength. Add that to our unique Piper-engineered base and casters and you have the finest Angle Rack in the industry.

TIE BARS AND CONTINUOUS WELD

• 1/2” extruded aluminum tie bar keeps rack square
• Adds rigidity and stability to rack
• Two tie bars per unit
• Weld along entire edge of glides
• No gaps to promote bacterial growth
• Solid Bottom Standard

WARRANTY

• One year parts and labor. Warranty is detailed on inside front cover of the price list.

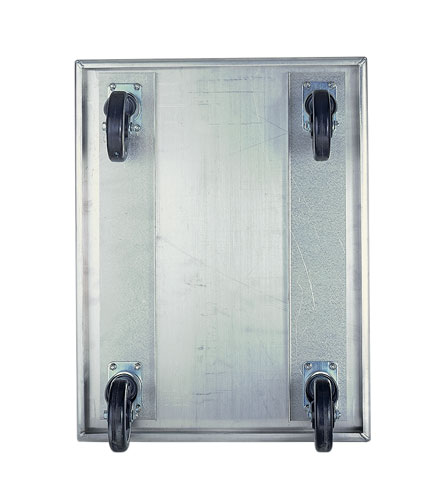

SOLID BOTTOM

• Rolled edge acts as bumper
• 12 gauge reinforcing caster channel eliminates twisting
• Fully welded corners
• Greatly enhances rack strength
• .090" thick aluminum

SUPERIOR CORNER SUPPORTS

• .190” thick gussets provide superior strength
• Extruded 3-sided channel support
• All sides fully welded

HEAVY-DUTY CASTERS

• Plate casters for added rigidity and stability
• 5" x 1-1/4" sealed wheels
• Delrin bearing, each with 350 lbs. capacity
• Maximum resistance to chemicals, acids, bases, alcohol, water and steam
• Maximum low temperature flexibility for superior performance, even in freezing temperatures
