| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| 3-CB (502-3RAF) | 3-Pan | 46" | 28" | 36" | 405 |
| 4-CB (502-4RAF) | 4-Pan | 60" | 28" | 36" | 445 |

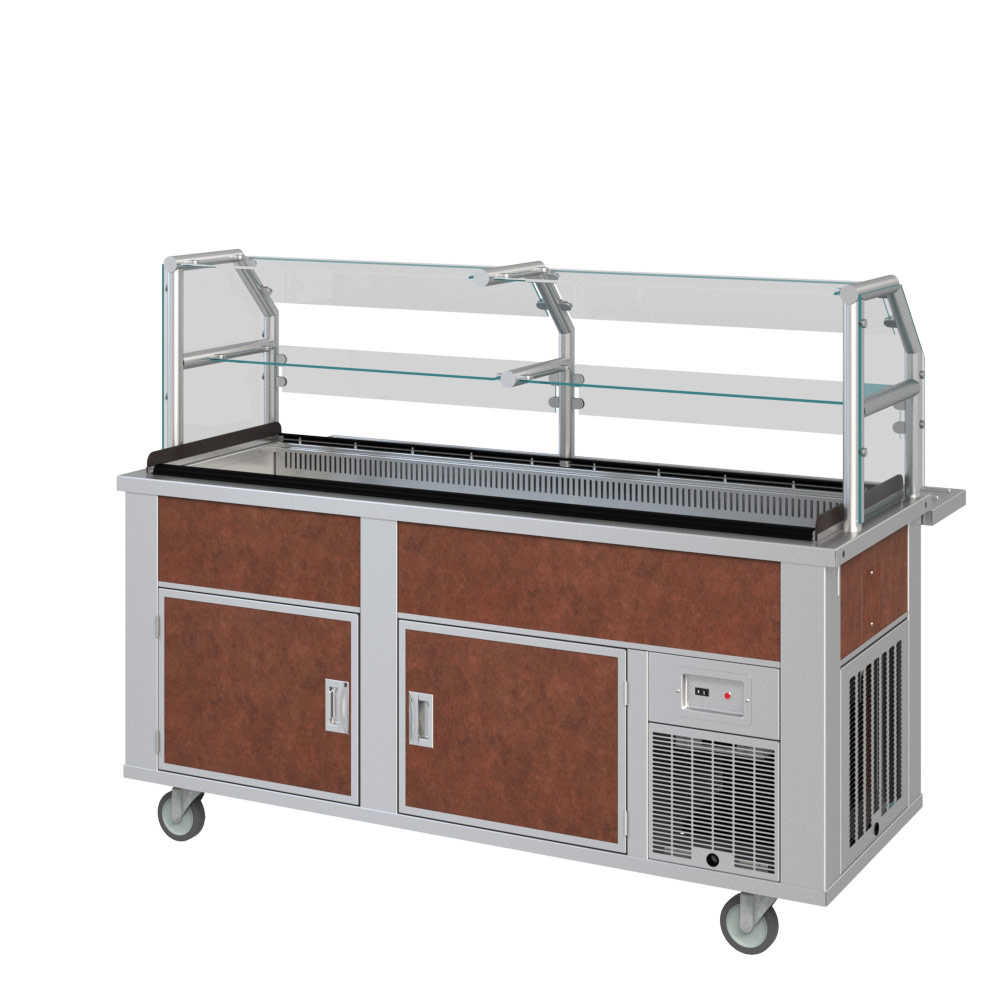

| 5-CB (502-5RAF) | 5-Pan | 74" | 28" | 36" | 485 |
| 6-CB (502-6RAF) | 6-Pan | 88" | 28" | 36" | 530 |
The innovative "Cool Breeze” technology allows you to maintain product at 41 degrees Fahrenheit or less yet requires no ice. The unit cascades a "Cool Breeze” of air over the product without drying it out or causing freezer burn.
STANDARD FEATURES
- 14-gauge stainless steel top with 1-1/2” turndown on all sides
- Top secured by four recessed bolts for easy access
- 14-gauge stainless steel legs
- 18-gauge stainless steel bottom shelf
- 20-gauge stainless steel end and front panels are attached to legs
- 4-3/4” deep well with interior stainless steel parts easily removed for cleaning
- Well is enclosed with insulation on sides, end and bottom
- 1” drain with shutoff valve is located on operator’s left side. Valve is 3/4" FPT. Drain valve is 3/4" FPT.
- Sliding doors
- Louvered panels for ventilation of condensing unit
- End louver panel removable to access compressor
- 5” diameter swivel plate casters, 2 with brakes
- Interlocking mechanism is provided to interlock with other Elite units
ELECTRICAL
- 120 volts single-phase
- Eight foot electrical cord with NEMA-5-15P plug
- On/Off switch and pilot light mounted on control panel of units operator side
*30" height is available on Petite Elite units
NSF/ANSI STANDARD 7
This unit is listed with CSA in NSF/ANSI Standard 7 for design and construction and has been performance tested for the storage of potentially hazardous foods. The performance test criteria is holding a food-like media at or below 41°F without any freezing for four hours at 86°F ambient temperature.
REFRIGERATION SYSTEM
- 1/3 horsepower compressor
- Fan-cooled condensing unit with a capillary tube expansion device
- Thermostat for better temperature control
- Environmentally safe 134A refrigerant
COMMON OPTIONS
- Tray slides
- Protector guards
- See reverse side for additional options
WARRANTY
One year parts and labor. Warranty is detailed on inside front cover of the price list.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| 3BTS | 3-Bar Tray Slide 12.75" wide w/hinged brackets |
| BDD | Buffet double display two-sided protector guard |
| BEG | Buffet end guards, right or left |
| BPG | Buffet double side protector guard (no heat or lights) |
| BPG1 | Buffet single side protector guard (no heat or lights) |
| BPG1C | Buffet Style Classic Single Sided protector guard |
| BPG1FL | Buffet single side protector guard with fluorescent lights |
| BPG1IL | Buffet single side protector guard with incandescent lights |
| BPGC | Classic protector guards |
| BPGFL | Buffet double side protector guard with fluorescent lights |
| BPGH | Buffet double side protector guard with heat strip |
| BPGIL | Buffet double side protector guard with incandescent lights |
| CDD | Cafeteria double display (no heat or lights) |
| CDDC | Cafeteria Style Classic double protector guards |
| CDDL | Cafeteria double display with fluorescent lights |
| CEG | Cafeteria end guards, right or left |
| CPG | Cafeteria protector guard (no heat or lights) |
| CPGC | Cafeteria Style Classic Single protector guard |
| CPGFL | Cafeteria protector guard with fluorescent lights |
| CPGHL | Cafeteria protector guard with heat and lights |
| CPGL | Cafeteria protector guard with incandescent lights |
| CUT | Cut out for drop in dispensers |
| DOUT | Duplex Outlet (120V, 15 AMP) |
| FRMA | Formica laminate finish |
| MBS | 18" maple end bread shelf; left, right - flush with top |
| MCB | Cutting Board Maple - 8" wide w/hinged brackets |
| PPC | Pizzazz Powder Coating |
| SBS | 18" stainless steel end bread shelf; left, right - flush with top |
| SCB | Cutting Board Stainless - 8" wide w/hinged brackets |
| SCPGC | Cafeteria Style Classic Single protector guards |
| SKR | Skirting |
| SRTS | Solid 3-ribbed tray slide, 16-gauge stainless steel |
| SSL | Legs in lieu of casters |
| UCR-1 | Refrigerated storage base with doors |
| UCR-2 | Refrigerated storage base - Units 74" and longer |
